Item Specifications :

Condition : A brand new unused, undamaged item that is fully operational and functions as intended.

Warranty : 2 Year Manufacturer.

Warranty Service : Repair or Replacement.

Package Contain :

1 No. Time switch unit.

1 No. user manual with technical details.

1 No. Warranty card of 2 years warranty

4 Nos. Screw and Hole plugs

1 No. Drill template

Product Descriptions :

This time switch will continue start and stop connected appliance as per preset on and off time

(for example if you have set 1 hour as ON time and 2 hours as OFF time then every 1 hour unit will start and two hour it will cut OFF output power)

user can set from 1 second to 999 minutes

Auto & Bypass facility provided. In auto mode when power goes and comes it will start the appliances after delay time. In manual mode user can start and stop the appliances by pressing the start and stop button of the controller

High & Low Voltage protection,

Adjustable voltage limit (High and low both voltage protection limit adjustable)

Short circuit protection

Current based dry run protection,

Adjustable dry run current from 0 to 30 A

Over load Protection,

Adjustable overload from 0 to 30 A

Two seperate display for volt and amp.

protection bypass facility

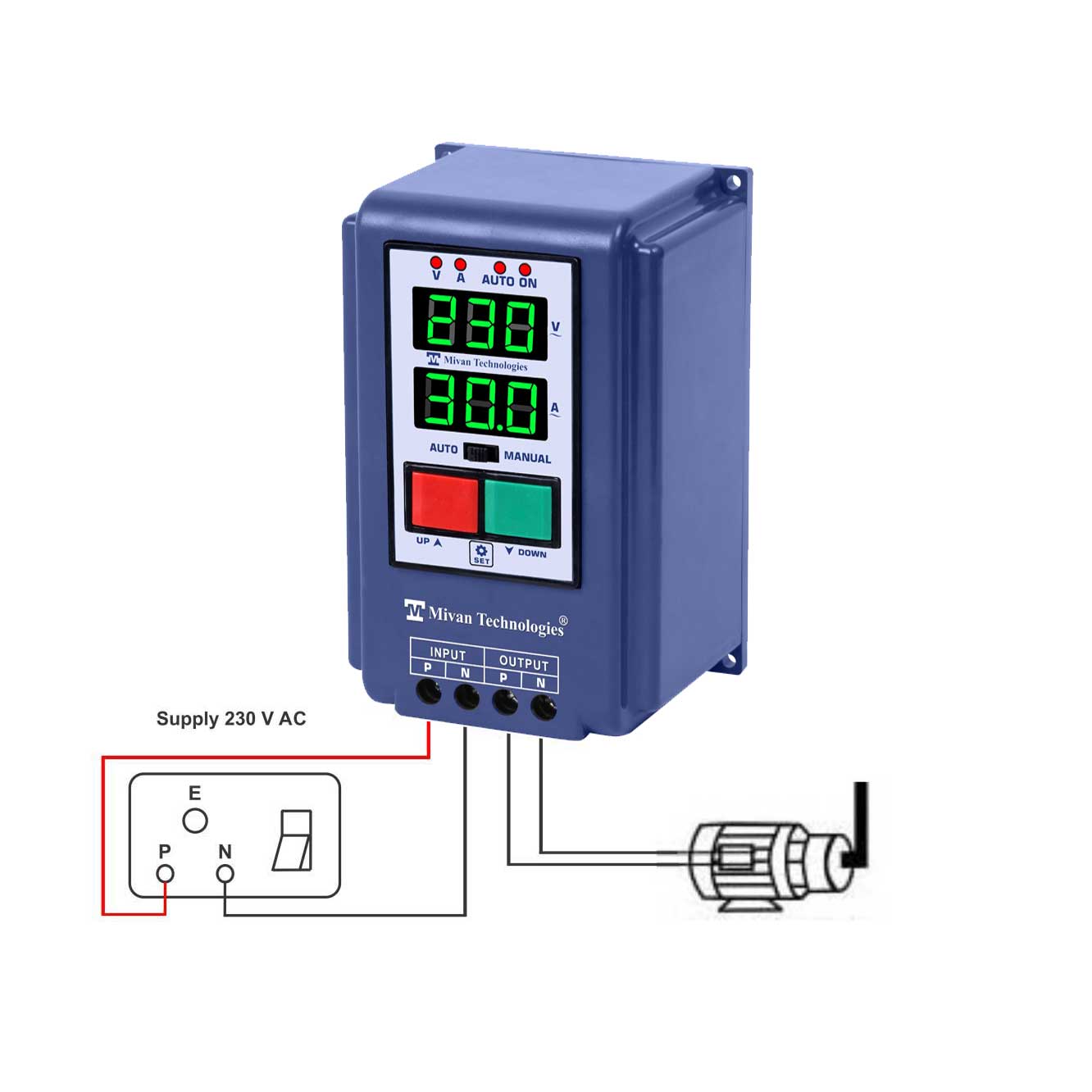

Input Voltage : 230 VAC

Output Voltage : 230 VAC

High accuracy in over load and dry run current

Start and stop button provided to start and stop motor

Set button provided to set the current voltage and timer.

Reset button provided to reset the unit

Factory reset facility in case of incorrect value entered.

Be free from data lost problem, As all programmed data will be stored in memory.

40 A Relay provided.

Supply Voltage 220-270 VAC. Microcontroller based,

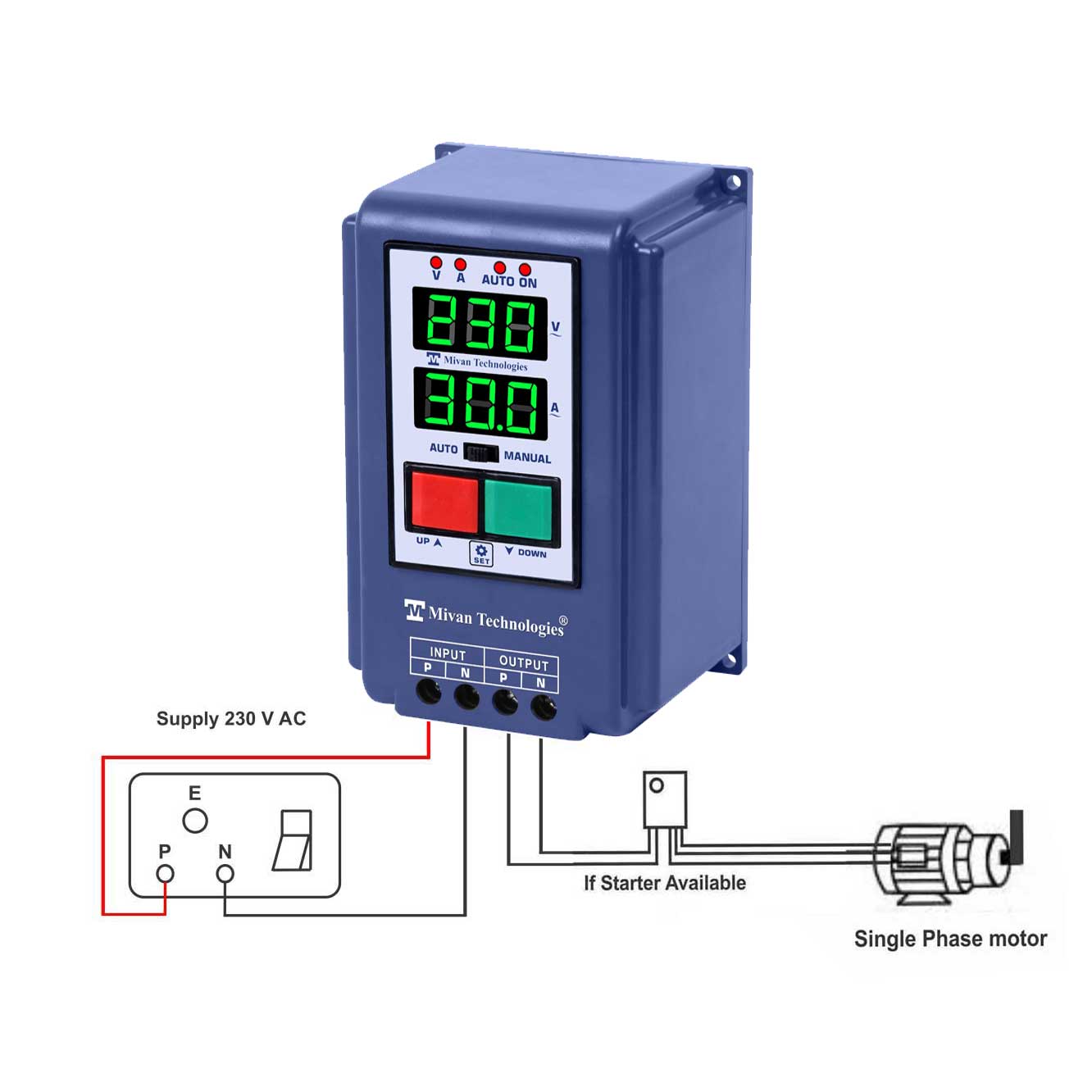

Best Quality Guaranteed. Used For Automatic Switching On/Off For single phase Motor upto 5 HP / A.C / Heater / cold storage / Electronic Sirens / Street Light / Signage Board / Hydroponics / Signalling / Home Automation

Every care is taken for packing so that the item reaches to the buyer safely and undamaged
